Gorsuch Max Air CounterFlow 17" reverse rotation composite cooling fan

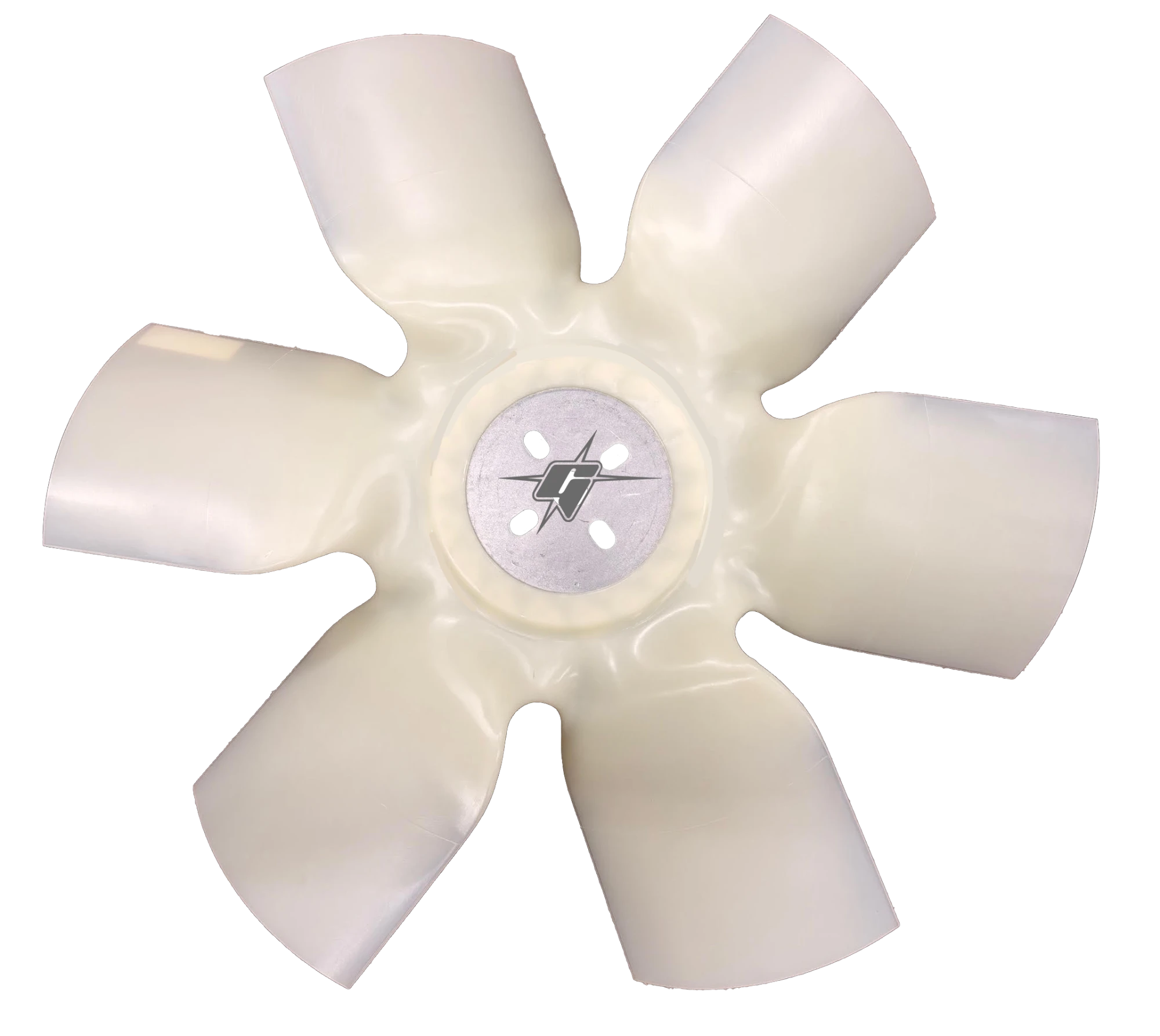

Max Air CounterFlow 17 inch 6-blade reverse rotation composite cooling fan
Fan rotation diagram: Max Air and Crate Air turn clockwise viewed from the front, Max Air CounterFlow turns counterclockwise.
  • Load image into Gallery viewer, Gorsuch Max Air CounterFlow 17" reverse rotation composite cooling fan
  • Load image into Gallery viewer, Max Air CounterFlow 17 inch 6-blade reverse rotation composite cooling fan
  • Load image into Gallery viewer, Fan rotation diagram: Max Air and Crate Air turn clockwise viewed from the front, Max Air CounterFlow turns counterclockwise.

Max Air CounterFlow Engine Cooling Fan

FC-10008
Vendor
Gorsuch Performance Solutions
Regular price
$225.00
Sale price
$225.00
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

NEWNow available for reverse rotation water pumps

Proven Gorsuch Fans, Now in Reverse Rotation

The 17" Max Air CounterFlow is brand new from Gorsuch Performance Solutions. It brings the composite fan design proven in circle track racing for years to reverse rotation water pumps in off-highway muscle cars, hot rods, engine swaps, custom builds and race cars.

17"
Max Air diameter
Reverse
Counterclockwise rotation viewed from the front
5/8"
Center bore with standard slotted 4-bolt pattern

Who It’s Designed For

Reverse Rotation Water Pumps

Built for engines whose water pump turns counterclockwise from the front. Reverse rotation is common on many modern serpentine-drive engines and popular engine swaps.

Budget LS Race Builds

A salvage-yard LS truck engine already runs a reverse rotation pump. Add a fan adapter and the CounterFlow and go racing.

Keep Your Front Drive

A mechanical fan option for builders who want to run their existing reverse rotation pump instead of converting the front drive.

Muscle Cars, Swaps and More

A fit for off-highway muscle cars, hot rods, engine swaps, custom builds and race cars that run a mechanical fan.

Will the CounterFlow fit my engine?

The CounterFlow needs a water pump that turns counterclockwise when viewed from the front of the engine. That is reverse rotation. The pump also needs a 4-bolt fan flange, or a fan clutch delete adapter on pumps with a threaded fan snout.

Pump rotation depends on how the accessory drive is set up. As a general rule:

  • Traditional V-belt setups normally use standard rotation pumps.
  • Factory serpentine setups normally use reverse rotation pumps.
  • Aftermarket serpentine brackets and kits vary by kit design and belt routing. Some use reverse rotation pumps and some use standard rotation. Check your kit’s instructions or your pump’s rotation before ordering.

Quick check: If the back of the belt drives your water pump pulley, the pump is reverse rotation.

Common fits:

  • GM LS truck engines (4.8, 5.3 and 6.0) with the factory water pump. Needs a fan clutch delete adapter, sold separately. See Mounting and Clearance.
  • Ford 5.0 and 5.8 with the factory serpentine drive and 4-bolt fan flange.
  • Small block and big block Chevy with an aftermarket serpentine kit that turns the pump in reverse.

Not a fit: LS car engines with the factory pump (no fan mount), GM LT1 and LT4 engines, Ford Modular engines and 5.7 Hemi trucks. Running an aftermarket front drive? Check its rotation. Many turn the pump standard rotation, which takes the Max Air 6-Blade.

See the rotation diagram in the product photos.

Confirm your pump turns counterclockwise when viewed from the front before ordering.

Why Builders Choose the CounterFlow

Strong Airflow for Off-Highway Use

The CounterFlow uses the same 6-blade design as the 17" Max Air, mirrored for reverse rotation. In flow testing the 17" Max Air averaged approximately 189% of the airflow of a 19" steel 4-blade fan.

Made for Engine Swaps

A good match for LS truck engine swaps (with a 4-bolt fan adapter) and other builds that run a reverse rotation water pump.

Light and Stiff Composite

The lightweight composite fan holds its shape at speed and is built to hold up under hard use.

Clean Look for Custom Builds

The composite fan gives custom builds and restomods a clean modern look under the hood.

Specifications

Part Number
FC-10008
Diameter
17"
Blade Count
6
Rotation
Reverse
Material
Lightweight composite
Color
Natural
Center Bore
5/8"
Bolt Pattern
Slotted 4-bolt, fits 1-3/4" through 2-1/8" bolt circles
Application
Reverse rotation water pumps with a 4-bolt fan flange

Mounting and Clearance

Important: LS Truck and Other Threaded Fan Snouts

Factory LS truck water pumps have a threaded clutch fan snout, not a 4-bolt flange. To run the CounterFlow you’ll need an LS truck fan clutch delete adapter (also called a fan clutch eliminator) that converts the threaded snout to a 4-bolt fan mount, sold separately. Whatever bolts directly to the fan must fit its 5/8" center bore and slotted 4-bolt pattern (1-3/4" through 2-1/8" bolt circles). Need to move the fan forward to reach your shroud? A fan spacer can go between the adapter and the fan if it matches the adapter’s bolt pattern and center pilot. Confirm your parts fit together before ordering.

Check Your Mounting

If your water pump already has a 4-bolt fan hub the CounterFlow bolts on with a fan spacer. Gorsuch fans have a 5/8" center bore and a slotted 4-bolt pattern that fits the common 1-3/4" through 2-1/8" bolt circles. If your water pump has a 5/8" pilot and your spacer has a 3/4" hole, the GPS Fan Spacer Reducer Bushing (HG-13028) keeps the fan centered. Mounting hardware and spacers are sold separately.

Check Your Clearance

Gorsuch fans project 1.5" toward the engine and 1.25" toward the radiator from the mounting flange. Measure your space in both directions before you order. The depth diagram is in the product photos.

Frequently Asked Questions

Tap a question to see the answer.

What cars is the CounterFlow designed for?

Off-highway muscle cars, hot rods, engine swaps, custom builds and racing applications that use a reverse rotation water pump with a mechanical fan.

Can I run the CounterFlow on a junkyard 5.3 in my race car?

Yes. The factory LS truck water pump turns reverse rotation. Add a fan clutch delete adapter, sold separately, and the CounterFlow bolts on. See Mounting and Clearance for adapter and spacer details. Going with a traditional front drive conversion instead? Those typically turn the pump standard rotation, so see the Max Air 6-Blade and Crate Air 3-Blade.

I have an LS car engine. Can I run a mechanical fan?

LS car engines came with electric fans, so the factory water pump has no fan mount. To run a mechanical fan you’ll need a front drive conversion. Most of those turn the pump standard rotation, which takes the Max Air 6-Blade or Crate Air 3-Blade. If your conversion turns the pump in reverse, the CounterFlow is the one.

How do I know if my water pump is reverse rotation?

Reverse rotation pumps turn counterclockwise when viewed from the front of the engine. Check your water pump manufacturer’s specifications or part number or your engine’s belt drive documentation.

Does the CounterFlow come with mounting hardware or a spacer?

The CounterFlow does not include mounting hardware or a fan spacer. The fan has a 5/8" centering bore and bolts to most popular aftermarket fan spacers. If your water pump has a 5/8" pilot and your spacer has a 3/4" hole, the GPS Fan Spacer Reducer Bushing (HG-13028) keeps everything centered.

How should I clean my fan?

Use warm water and mild soap. Keep the pressure low and the nozzle at a distance if you use a pressure washer.

Will the CounterFlow work with a standard rotation water pump?

No. The CounterFlow is built for reverse rotation only. See the Max Air 6-blade for standard rotation pumps.

Running a standard rotation water pump? See the Max Air 6-Blade.

For race and off-highway use only. Not for highway use.

Questions? Talk to a Racer

Not sure this is the right part for your car? Send us a message.
